Product Manual

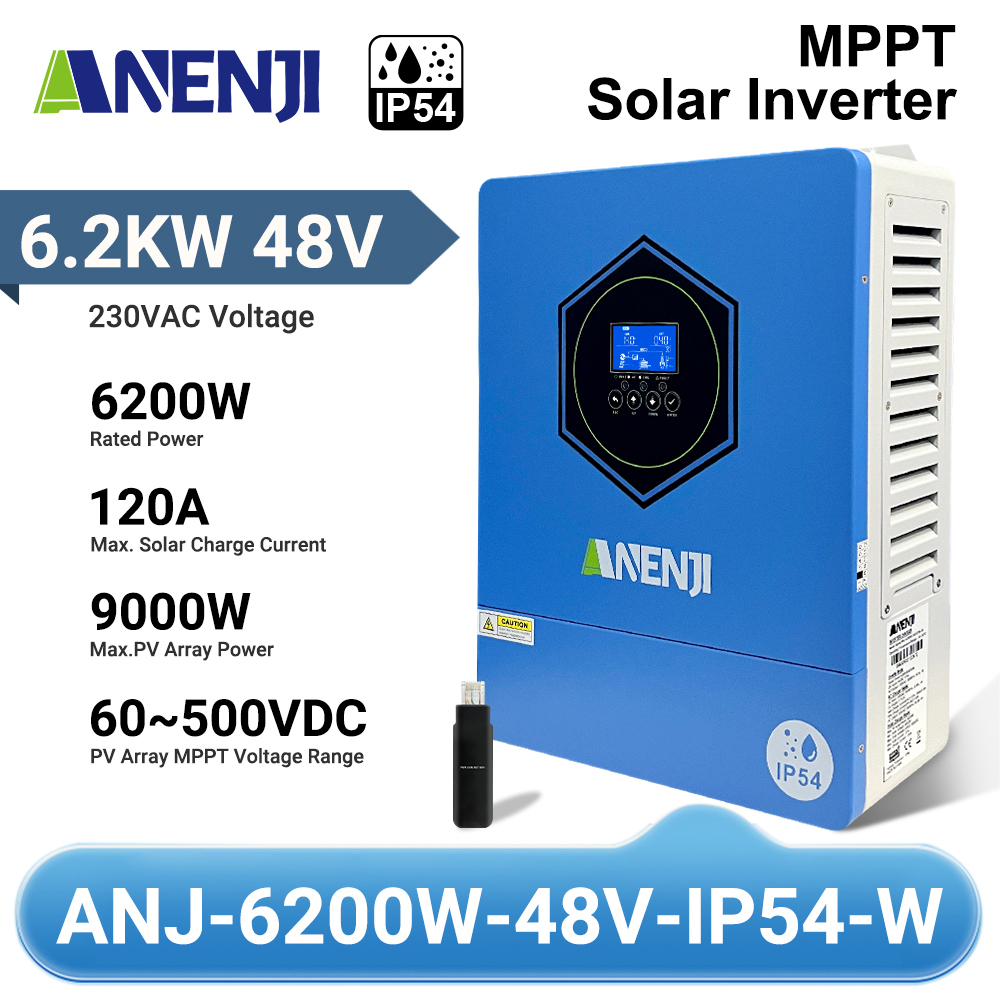

| MODEL | ANJ-6200W-48V-W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Loss Voltage | 170Vac+7V (UPS) 90Vac+7V (Appliances) |
| Low Loss Return Voltage | 180Vac±7V (UPS);100Vac+7V (Appliances) |
| High Loss Voltage | 280Vac±7V |
| High Loss Return Voltage | 270Vac±7V |
| Max AC Input Voltage | 300Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| Low Loss Frequency | 40±1Hz |
| Low Loss Return Frequency | 42±1Hz |
| High Loss Frequency | 65±1Hz |
| High Loss Return Frequency | 63±1Hz |
| Output Short Circuit Protection | Battery mode: Electronic Circuits |
| Efficiency (Line Mode) | >95% (Rated R load, battery full charged) |
| Transfer Time | 10ms typical (UPS); 20ms typical(Appliances) |
| Rated Output Power | 6.2KVA/6.2KW |
| Dual output function | Yes |
| Max.main output power | 6.2KVA/6.2KW |
| Max.second output power | 6.2KVA/6.2KW |

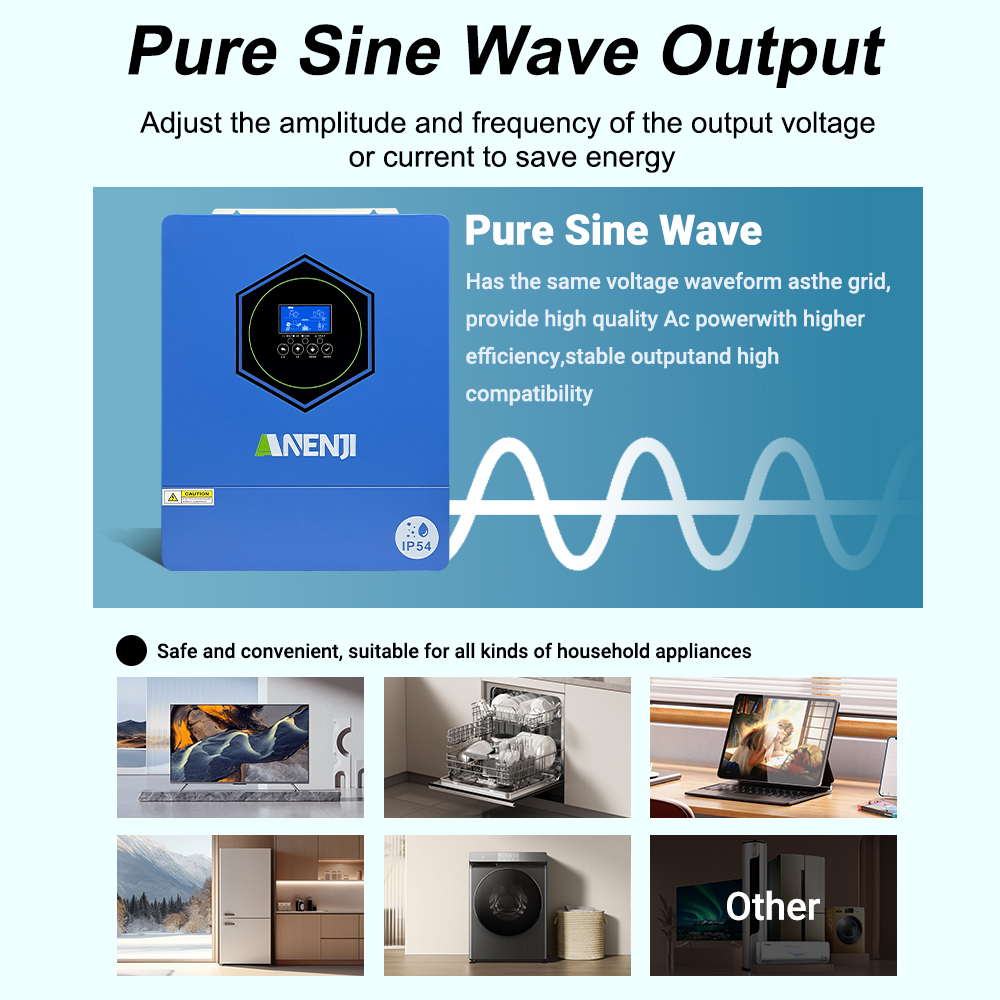

| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 230Vac+5% |
| Output Frequency | 50Hz or 60Hz |
| Peak Efficiency | 94% |
| Surge Capacity | 2* rated power for 5 seconds |
| Nominal DC Input Voltage | 48Vdc |
| Cold Start Voltage | 46.0Vdc |
| Utility Charging Mode | |
| Max Charging Current(PV+AC) | 120Amp |
| Max Charging Current(AC) | 120Amp |
| Flooded Battery | 58.4Vdc |
| AGM / Gel Battery | 56.4Vdc |
| Floating Charging Voltage | 54Vdc |
| Overcharge Protection | 64Vdc |
| Battery reverse connection protection | No |
| Charging Algorithm | 3-Step |

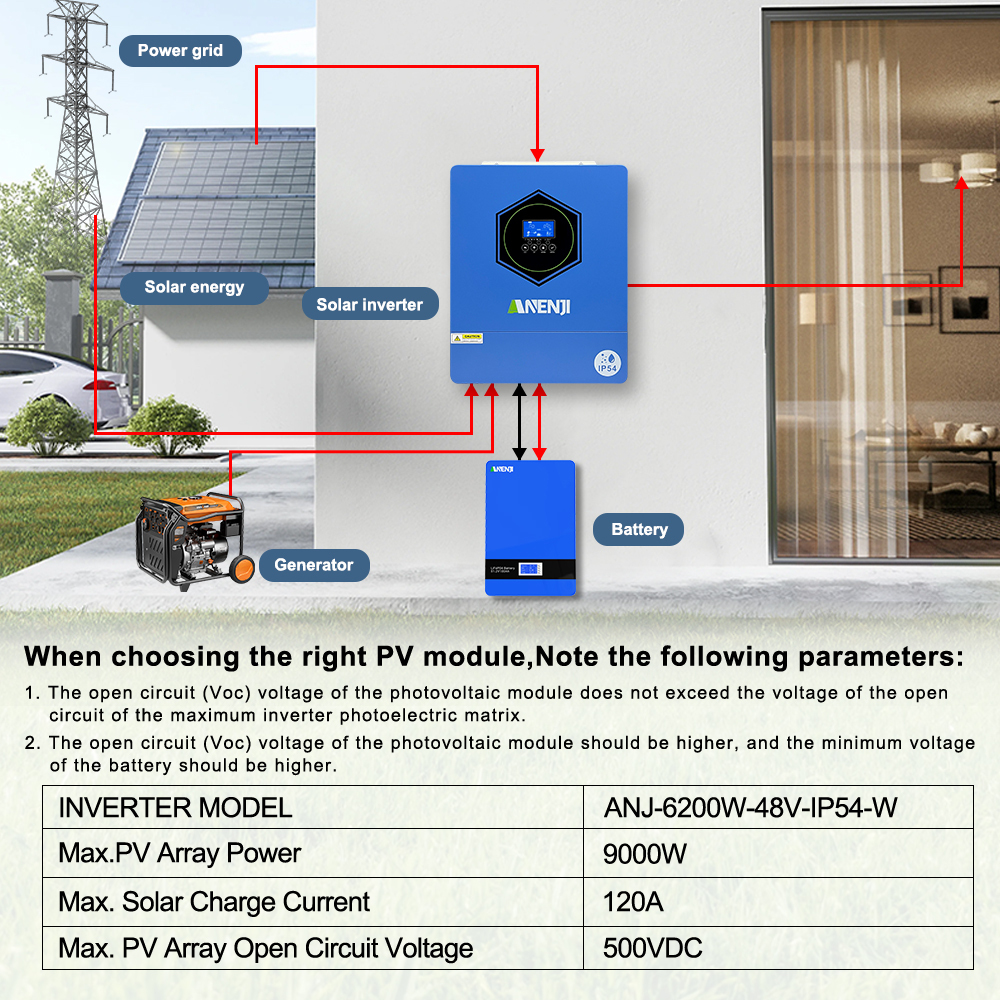

| Solar Input | |
| Rated Power | 9000W |
| Max. PV Array Open Circuit Voltage | 500Vdc |
| PV Array MPPT Voltage Range | 60Vdc~500Vdc |
| Max. Input Current | 27A |
| Max.Charging Current(PV) | 120A |
| General Specifications | |
| Operating Temperature Range | -10°C to 55°C |
| Storage temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Net Weight, kg | 7.2 |
