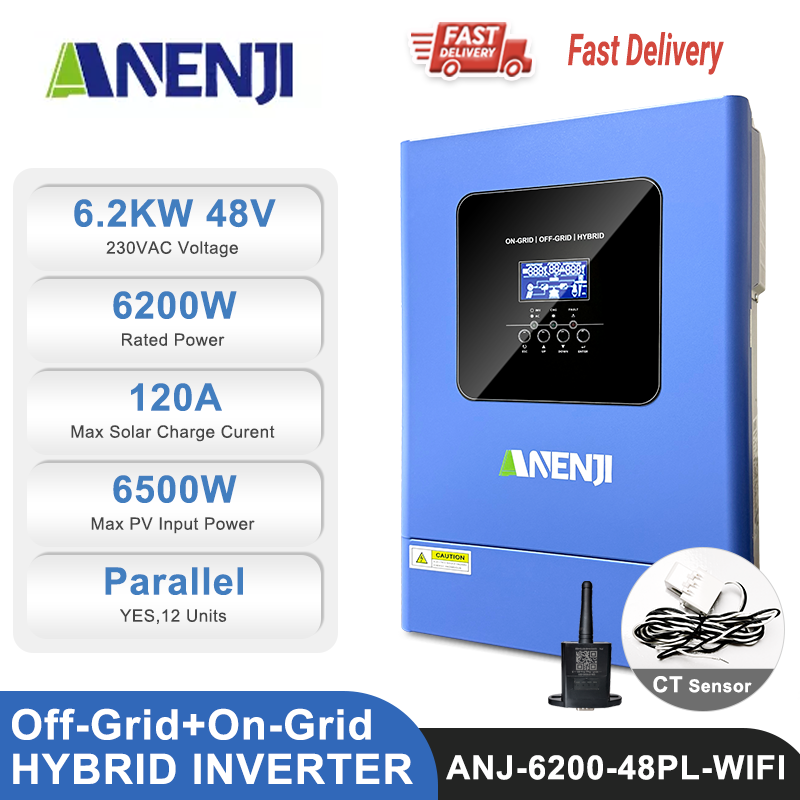

Anenji 6.2KW 48V Hybrid Inverter On grid Off grid with WIFI with CT
$335.99 USD
Calcola la spedizione al momento del pagamento
Free shipping EU
NO VAT
Secure Payments
Quantità
Click to download ANENJI 6200W 48V Hybrid Parallel Inverter user manual
ANENJI's new product: 6.2kW 48V hybrid solar inverter with feed-in capability, parallel function, and support for three units in parallel to form a three-phase inverter.
Suitable for a wide range of usage scenarios, this inverter features both off-grid and on-grid functionality. Up to 12 units can be paralleled, or three units can be connected to create an 18.6kW three-phase inverter.
With stronger performance and all-in-one functionality, it’s yet another highly cost-effective solar inverter.

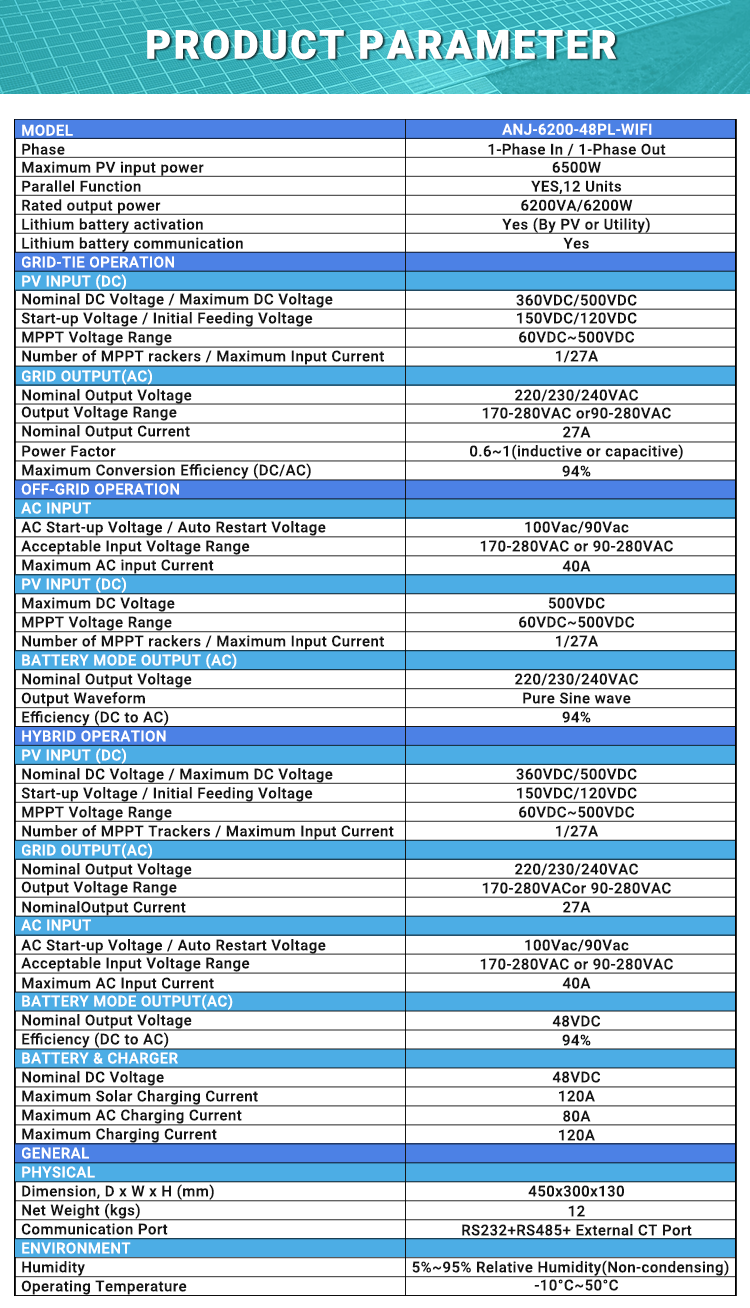

| MODEL | ANJ-6200-48PL-WIFI |
| Phase | 1-Phase In/1-Phase Out |
| Maximum PV input power | 6500W |
| Parallel Function | YES,12 Units |
| Rated output power | 6200VA/6200W |
| Lithium battery activation | Yes (By PV or Utility) |
| Lithium batterycommunication | Yes |
| GRID-TIE OPERATION | |
| PV INPUT(DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage /Initial Feeding Voltage | 150VDC/120VDC |
| MPPT Voltage Range | 60VDC~500VDC |
| Number of MPPT rackers /Maximum input Current | 1/27A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 170-280VAC or 90-280VAC |
| Nominal Output Current | 27A |
| Power Factor | 0.6~1(inductive or capacitive) |
| Maximum Conversion Efficiency(DC/AC) | 94% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 100Vac/90Vac |
| Acceptable Input Voltage Range | 170-280VAC or 90-280VAC |
| Maximum Ac input Current | 40A |
| PV INPUT(DC) | |
| Maximum DC Voltage | 500VDC |
| MPPT Voltage Range | 60VDC~500VDC |
| Number of MPPTrackers/Maximum input Current | 1127A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure Sine wave |
| Effciency (DC to AC) | 94% |
| HYBRID OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage /Initial Feeding Voltage | 150VDC/120VDC |
| MPPT Voltage Range | 60VDC~500VDC |
| Number ofMPPT Trackers/Maximum input Current | 1/27A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 170-280VAC or 90-280VAC |
| NominalOutput Current | 27A |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 100Vac/90Vac |
| Acceptable Input Voltage Range | 170-280VAC or 90-280VAC |
| Maximum AC input Current | 40A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 48VDC |
| Effciency(DC to AC) | 94% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 80A |
| Maximum Charging Current | 120A |
| GENERAL | |
| PHYSICAL | |
| Dimension,D xW xH(mm) | 450x300x130 |
| Net Weight (kgs) | 12 |

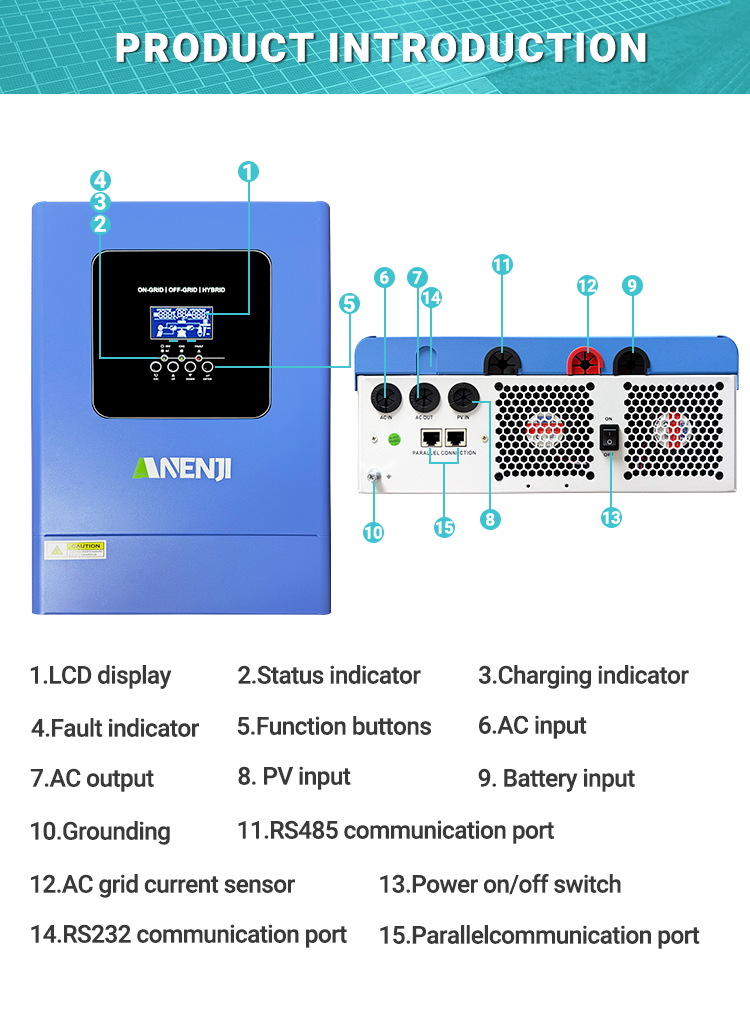

| Communication Port | RS232+RS485+ External CT Port |
| ENVIRONMENT | |
| Humidity | 5%~95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C~50°C |
SVARTAPD EEROYVANAGEME
Customize your power supply via the ANENJl app. Check the status of this inverter via Wi-Fi or Bluetooth.
Charging and discharging priority
Select energy sources for battery charging and inverter supply
