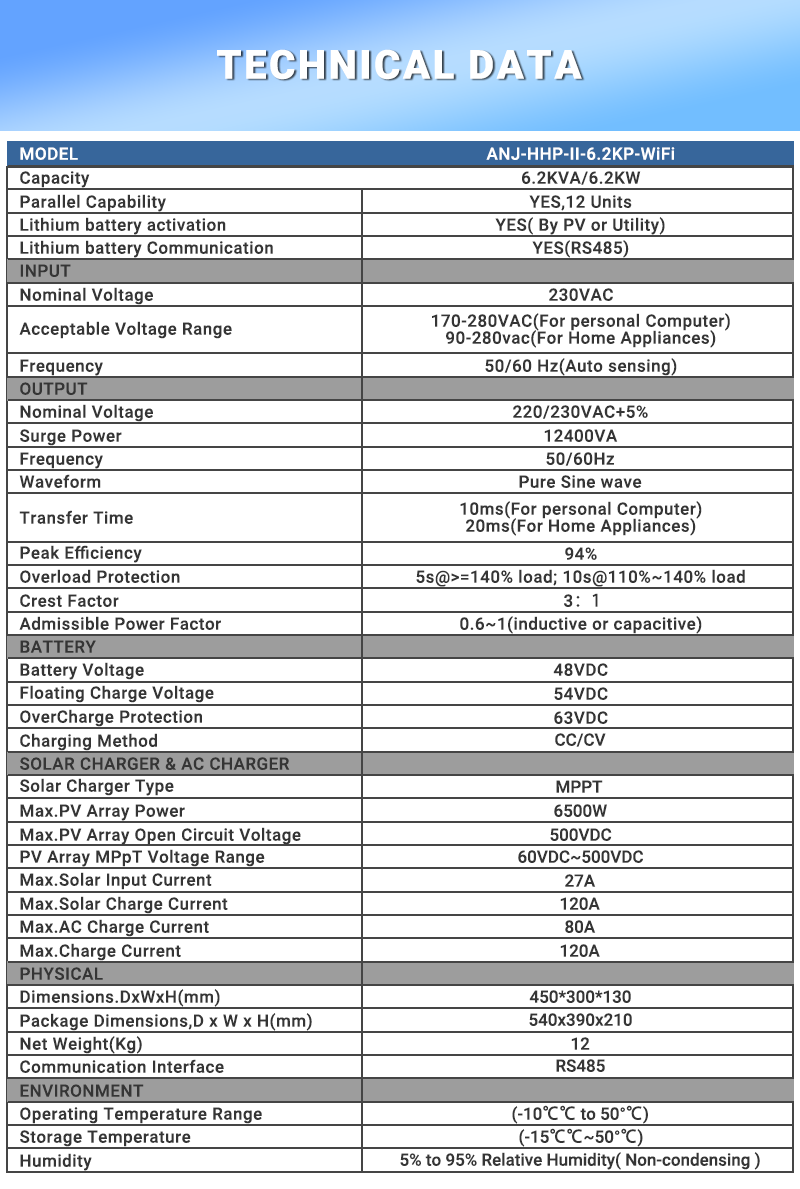

| MODEL | ANJ-HHP-II-6.2KP-WIFI |
| Capacity | 6.2KVA/6.2KW |
| Parallel Capability | YES,12 Units |
| Lithium battery activation | YES(By PV or Utility) |
| Lithium battery Communication | YES(RS485) |
| INPUT | |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer) 90-280vac(For Home Appliances) |
| Frequency | 50/60 Hz(Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220/230VAC+5% |
| Surge Power | 12400VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer) 20ms(For Home Appliances) |
| Peak Efficiency | 94% |
| Overload Protection | 5s@>=140%load;10s@110%~140%load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1(inductive or capacitive) |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | Cc/CV |
| SOLAR CHARGER &AC CHARGER | |
| Solar Charger Type | MPPT |
| Max.PV Array Power | 6500W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPpT Voltage Range | 60VDC~500VDC |
| Max.Solar Input Current | 27A |
| Max.Solar Charge Current | 120A |
| Max.AC Charge Current | 80A |
| Max.Charge Current | 120A |
| PHYSICAL | |
| Dimensions.DxWxH(mm) | 450*300*130 |
| Package Dimensions,DxWxH(mm) | 540x390x210 |
| Net Weight(Kg) | 12 |
| Communication Interface | RS485 |
| ENVIRONMENT | |
| Operating Temperature Range | (-10℃℃ to 50℃) |
| Storage Temperature | (-15℃℃~50℃) |
| Humidity | 5%to 95%Relative Humidity(Non-condensing) |
