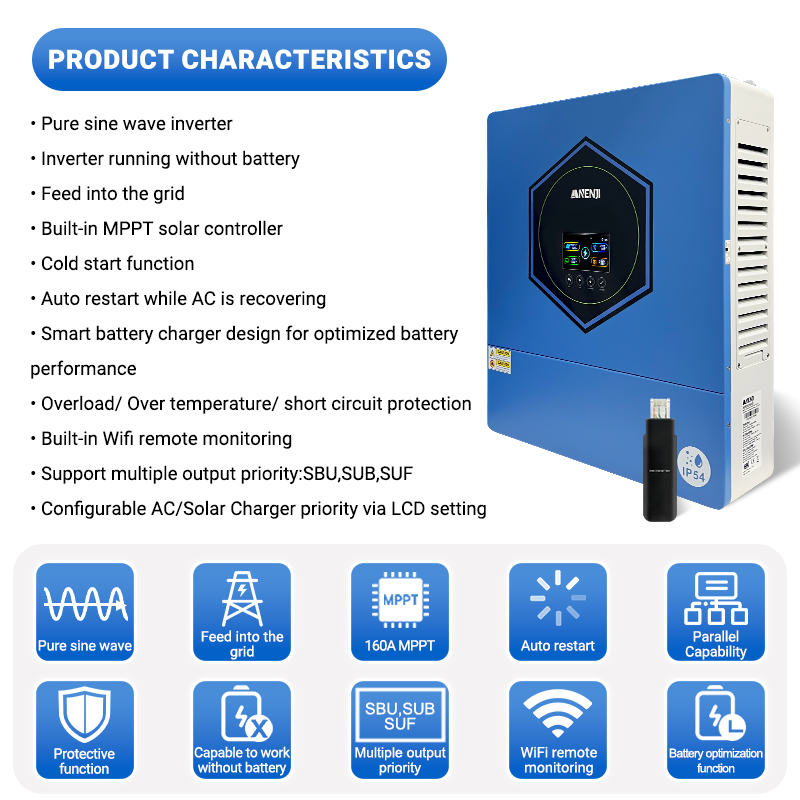

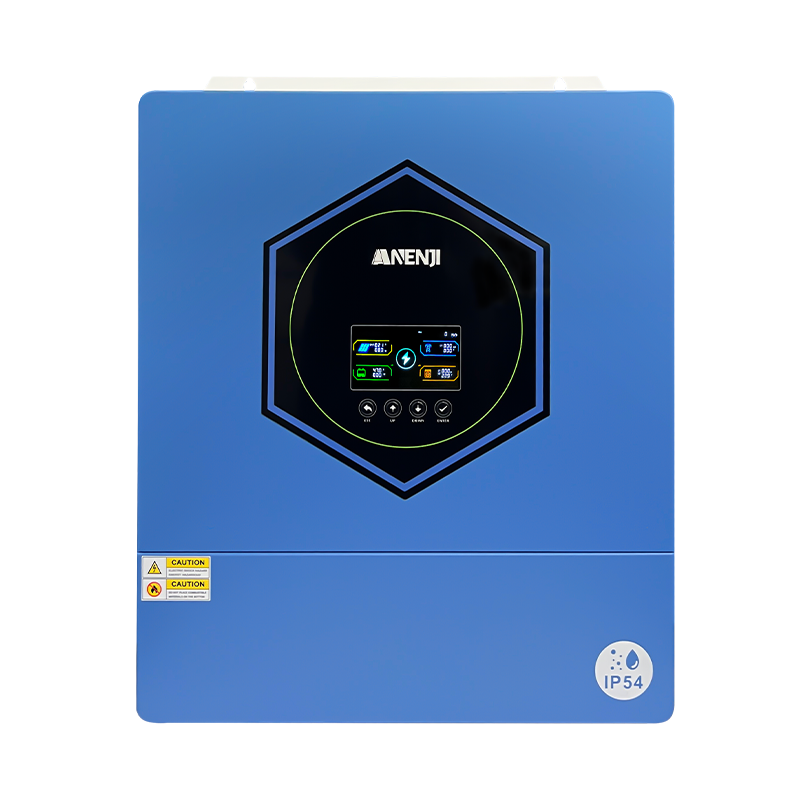

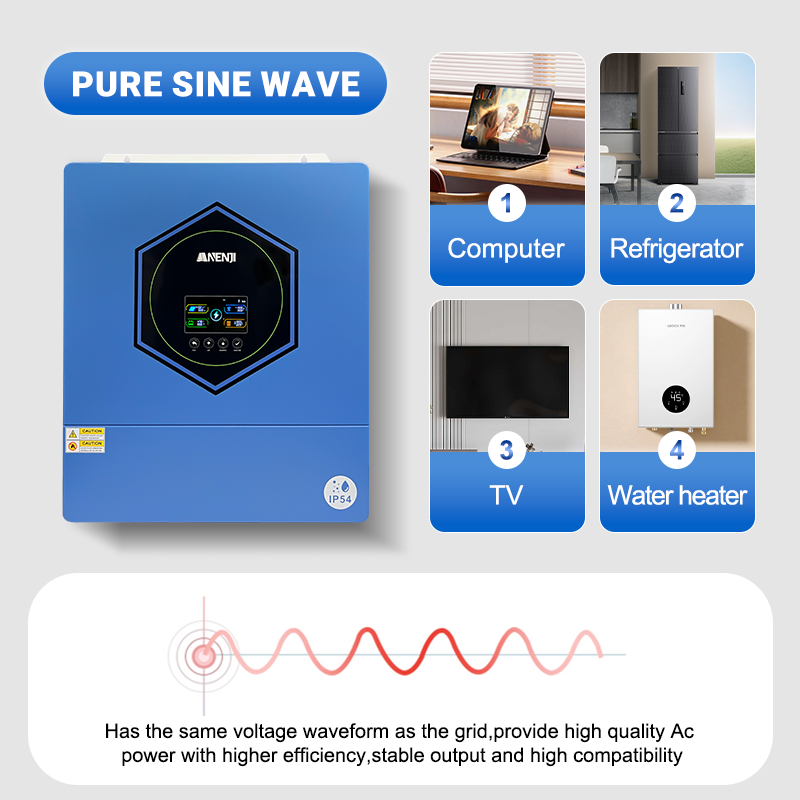

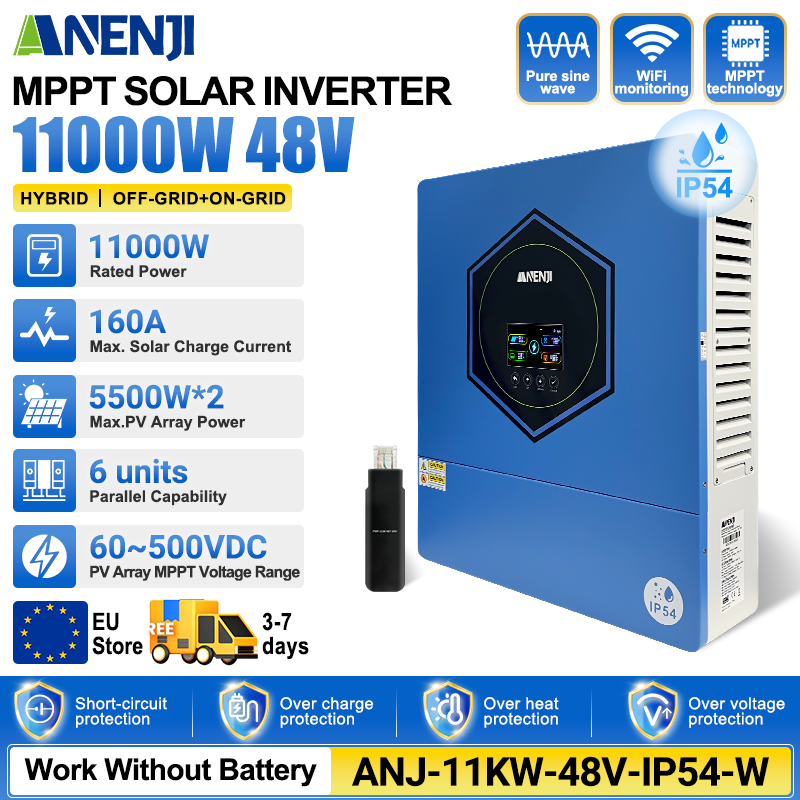

Anenji 11KW 48V Hybrid Solar Inverter Pure Sine Wave 2×MPPT WIFI Up to 6 Units Parallel On‑Off Grid for Home Solar System IP54
$580.00 USD
Izračun stroškov prevoza na blagajni
Fast Shipping
NO VAT
Secure Payments
Količina
Product Manual： ANJ-11KW-48V-IP54-W
| MODEL | ANJ-11KW-48V-IP54-W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Loss Voltage | 170Vac+7V (UPS) 90Vac+7V (Appliances) |
| Low Loss Return Voltage | 180Vac+7V (UPS);100Vac±7V (Appliances) |
| High Loss Voltage | 280Vac±7V |
| High Loss Return Voltage | 270Vac+7V |
| Max AC Input Voltage | 300Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| Low Loss Frequency | 40+1Hz |
| Low Loss Return Frequency | 42+1Hz |
| High Loss Frequency | 65+1Hz |
| High Loss Return Frequency | 63+1H2 |
| Output Short Circuit Protection | Battery mode: Electronic Circuits |
| Efficiency (Line Mode) | >95% (Rated R load, battery full charged ) |
| Transfer Time | 10ms typical (UPS); 20ms typical(Appliances) |
| Rated Output Power | 11.0KVA/11.0KW |
| Dual output function | Yes,Only available in single system |
| Max.main output power | 11.0KVA/11.0KW |
| Max.second output power | 5.5KVA/5.5KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 230Vac±5% |
| Output Frequency | 50Hz or 60Hz |
| Peak Efficiency | 94% |
| Surge Capacity | 2* rated power for 5 seconds |
| Nominal DC Input Voltage | 48Vdc |
| Cold Start Voltage | 46.0Vdc |

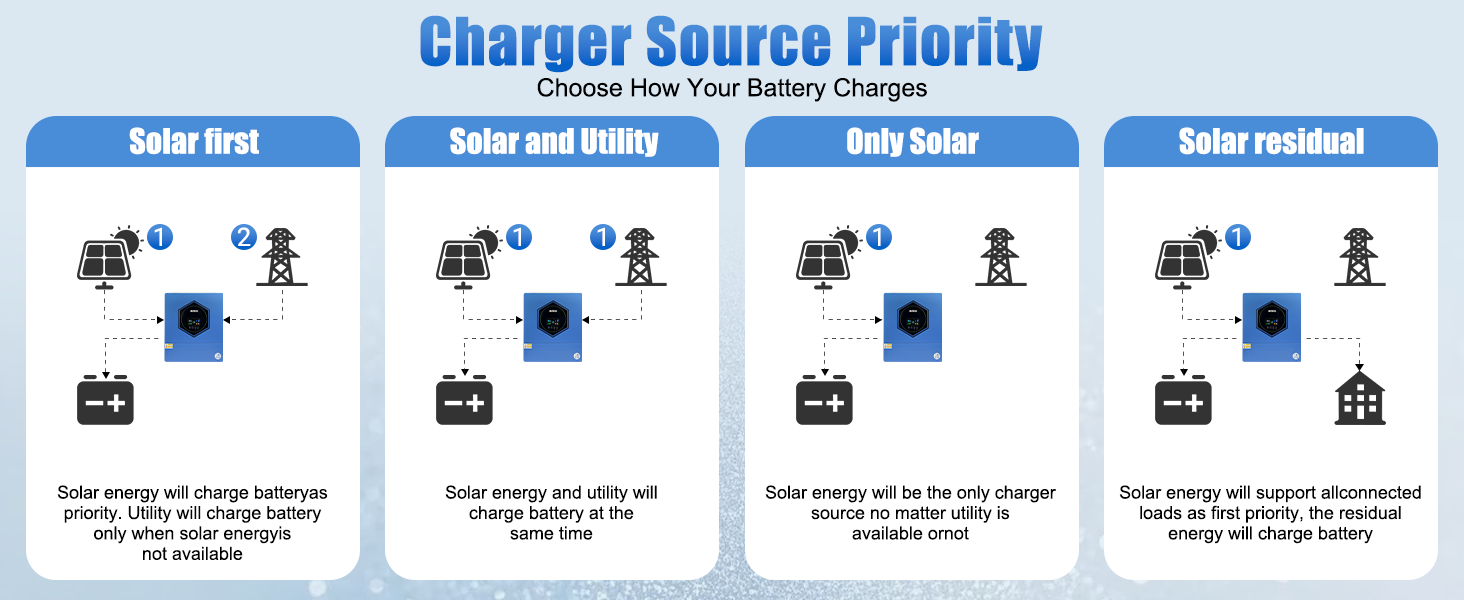

| Utility Charging Mode | |
| Max Charging Current(PV+AC) | 160Amp |
| Max Charging Current(AC) | 120Amp |
| Flooded Battery | 58.4Vdc |
| AGM/Gel Battery | 56.4Vdc |
| Floating Charging Voltage | 54Vdc |
| Overcharge Protection | 63Vdc |
| Parallel Capability | YES, 6units |
| Charging Algorithm | 3-Step |

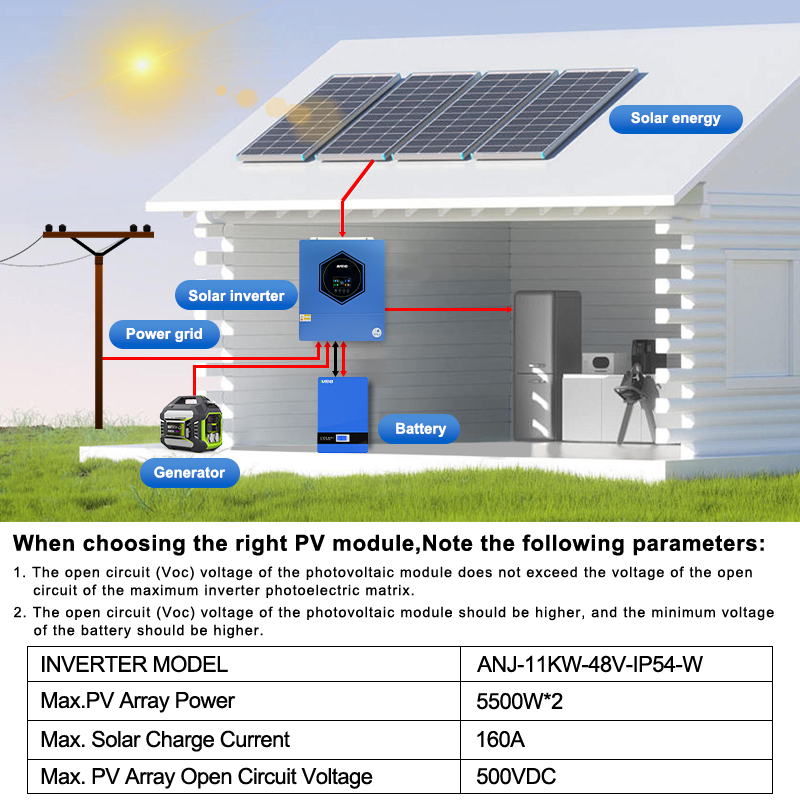

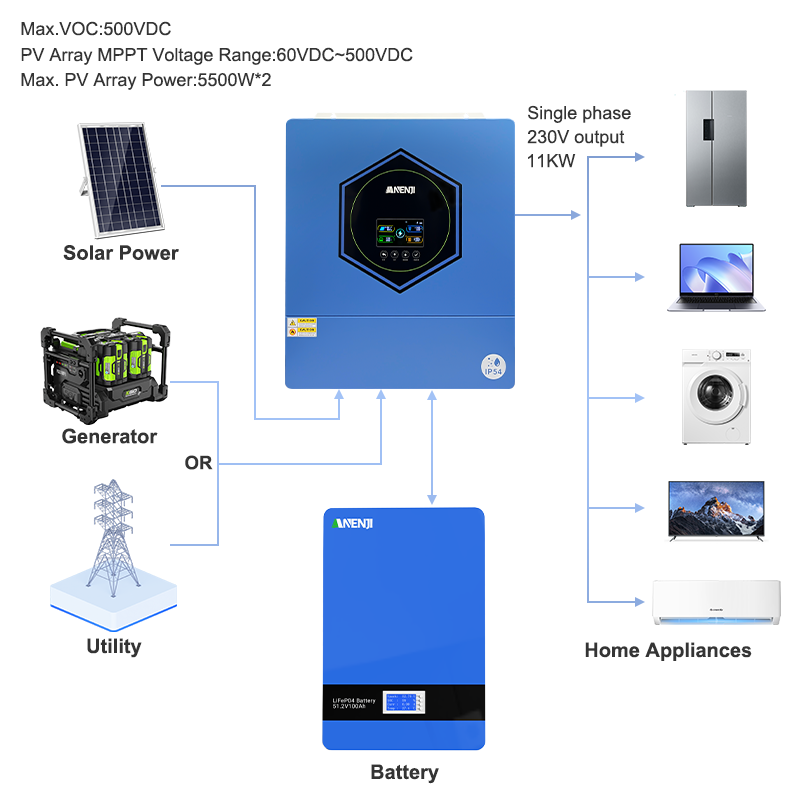

| Solar Input | |
| Rated Power | 5500W*2 |
| Max. PV Array Open Circuit Voltage | 500Vdc |
| PV Array MPPT Voltage Range | 60Vdc~500Vdc |
| Max. Input Current | 27A*2 |
| Max. MPPT Charge Current | 160A |
| General Specifications | |
| Operating Temperature Range | -10°Cto 55°C |
| Storage temperature | -15°C~60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Net Weight, kg | 18.25 |
| Dimension(D*W*H), mm | 544x470x135 |
