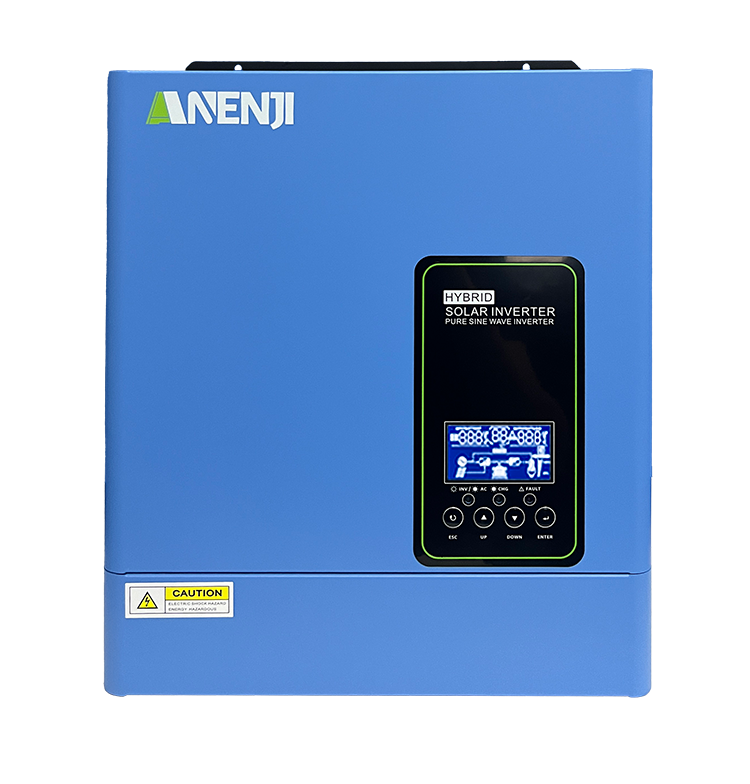

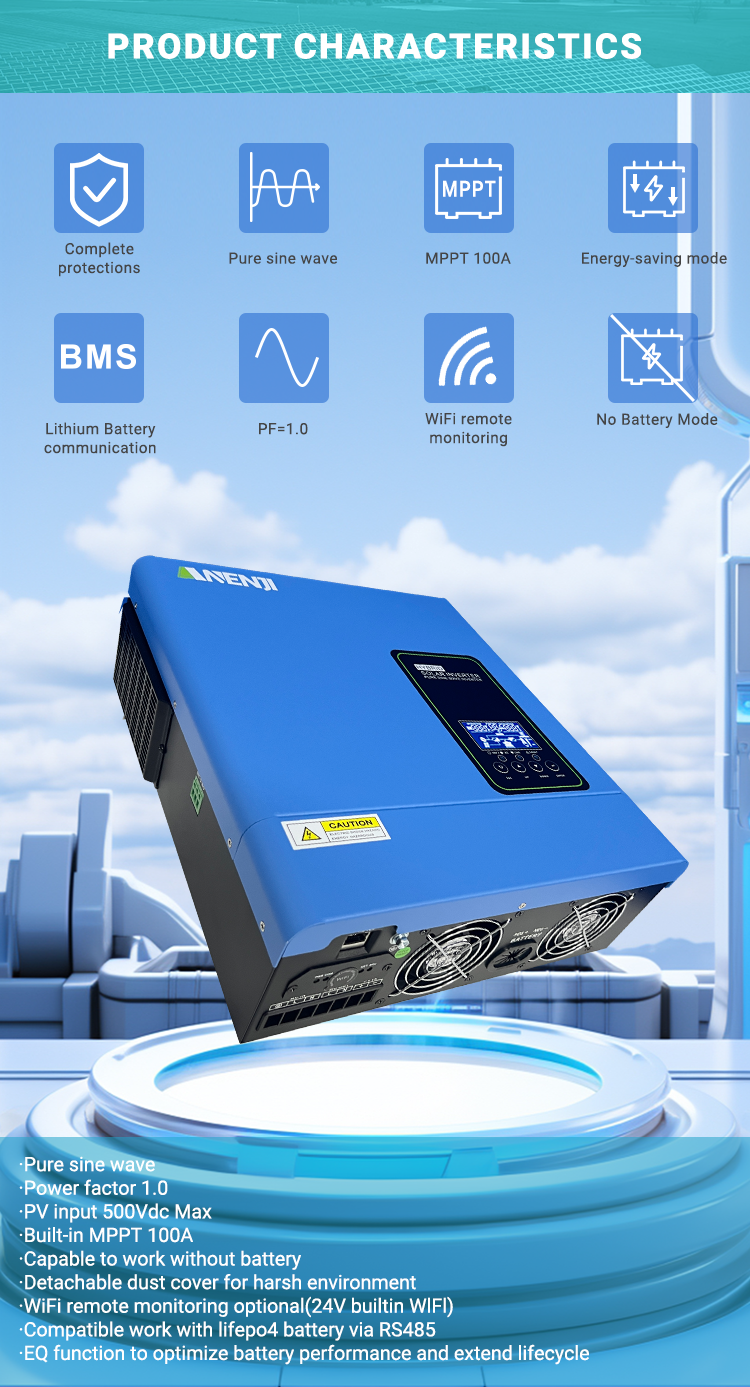

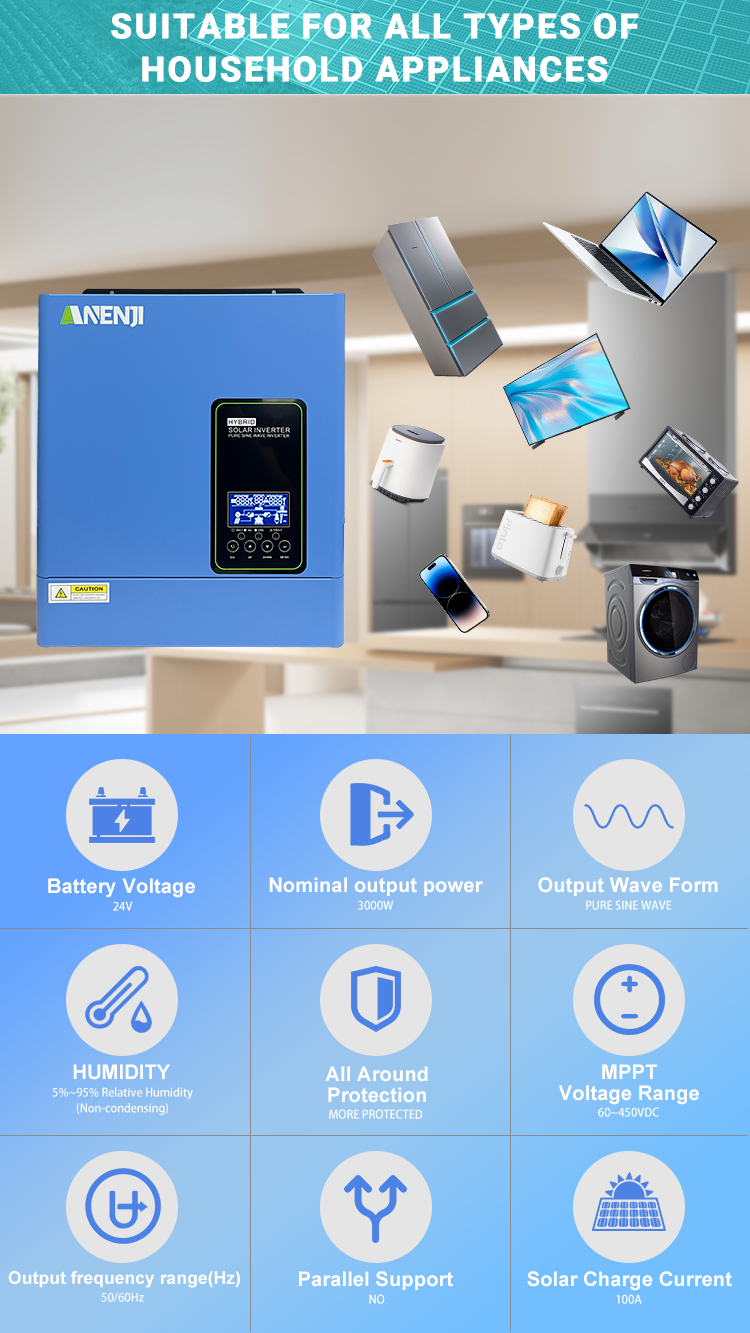

Anenji 3KW 24V Hybrid Solar Inverter On grid Off grid Inverter with WIFI
$235.00 USD
Navlun ücreti ödeme sırasında hesaplanır
Fast Shipping
NO VAT
Secure Payments
Miktar
ANJ-3KW-24V-LV-WIFI User Manual

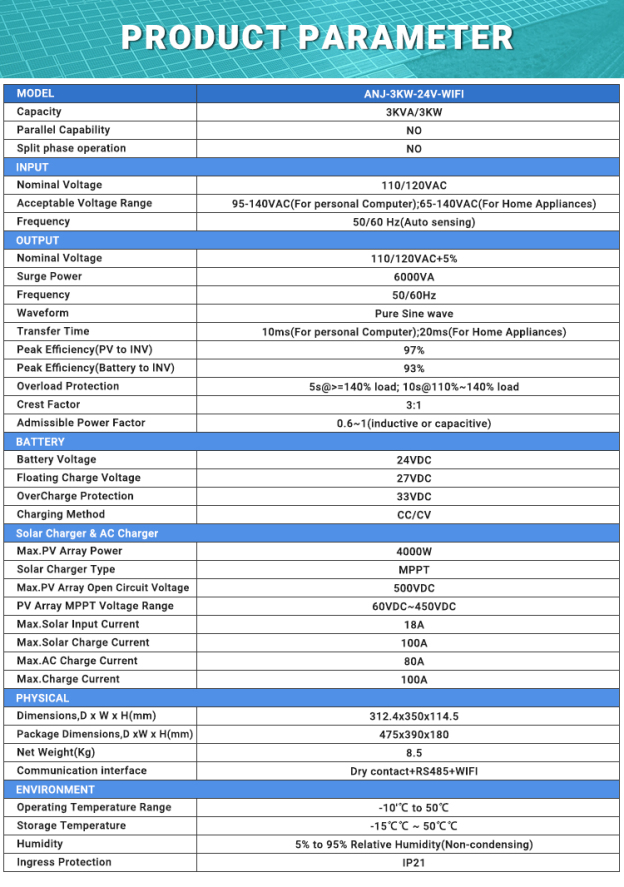

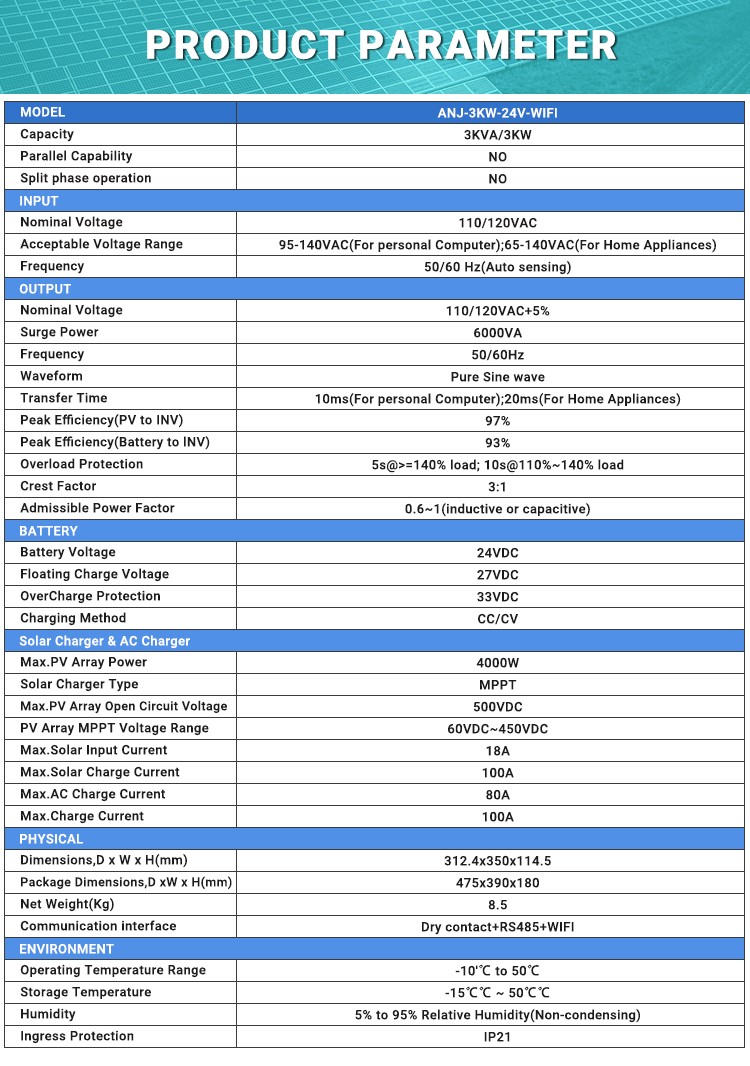

| MODEL | ANJ-3KW-24V-WIFI |
| Capacity | 3KVA/3KW |
| Parallel Capability | NO |
| Split phase operation | NO |
| INPUT | |
| Nominal Voltage | 110/120VAC |
| Acceptable Voltage Range | 95-140VAC(For personal Computer);70-140VAC(For Home Appliances) |
| Frequency | 50/60 Hz(Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 110/120VAC+5% |
| Surge Power | 6000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 97% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 5s@>=140% load; 10s@110%~140% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1(inductive or capacitive) |
| BATTERY | |

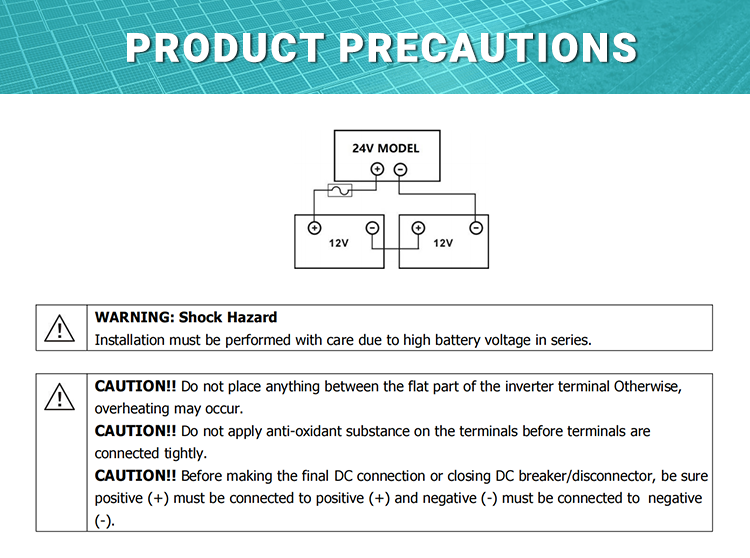

| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Over Charge Protection | 33VDC |
| Charging Method | CC/CV |
| Solar Charger & AC Charger | |

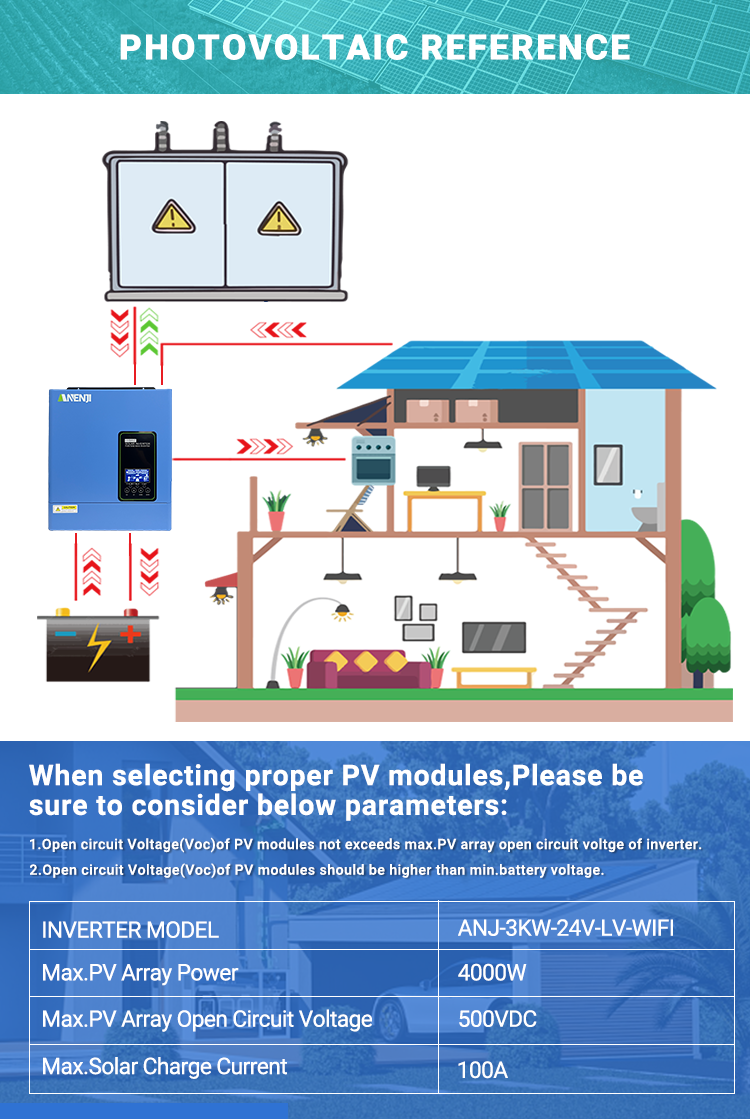

| Max.PV Array Power | 4000W |
| Solar Charger Type | MPPT |
| Max.PV Array Open Circuit Voltage | 500 VDC |
| PV Array MPPT Voltage Range | 60VDC~450VDC |
| Max.Solar Input Current | 27A |
| Max.Solar Charge Current | 100A |
| Max.AC Charge Current | 80A |
| Max.Charge Current | 100A |
| PHYSICAL | |
| Dimensions,D x W x H(mm) | 312.4x350x114.5 |
| Package Dimensions,D xW x H(mm) | 475x390x180 |
| Net Weight(Kg) | 8.5 |
| Communication interface | Dry contact+RS485+WIFI |
| ENVIRONMENT | |
| Operating Temperature Range | -10'Cto 50°C |
| Storage Temperature | -15°C°C~ 50°C°C |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Ingress Protection | IP21 |
