ANJ-12K(P)-SP-WIFI User Manual

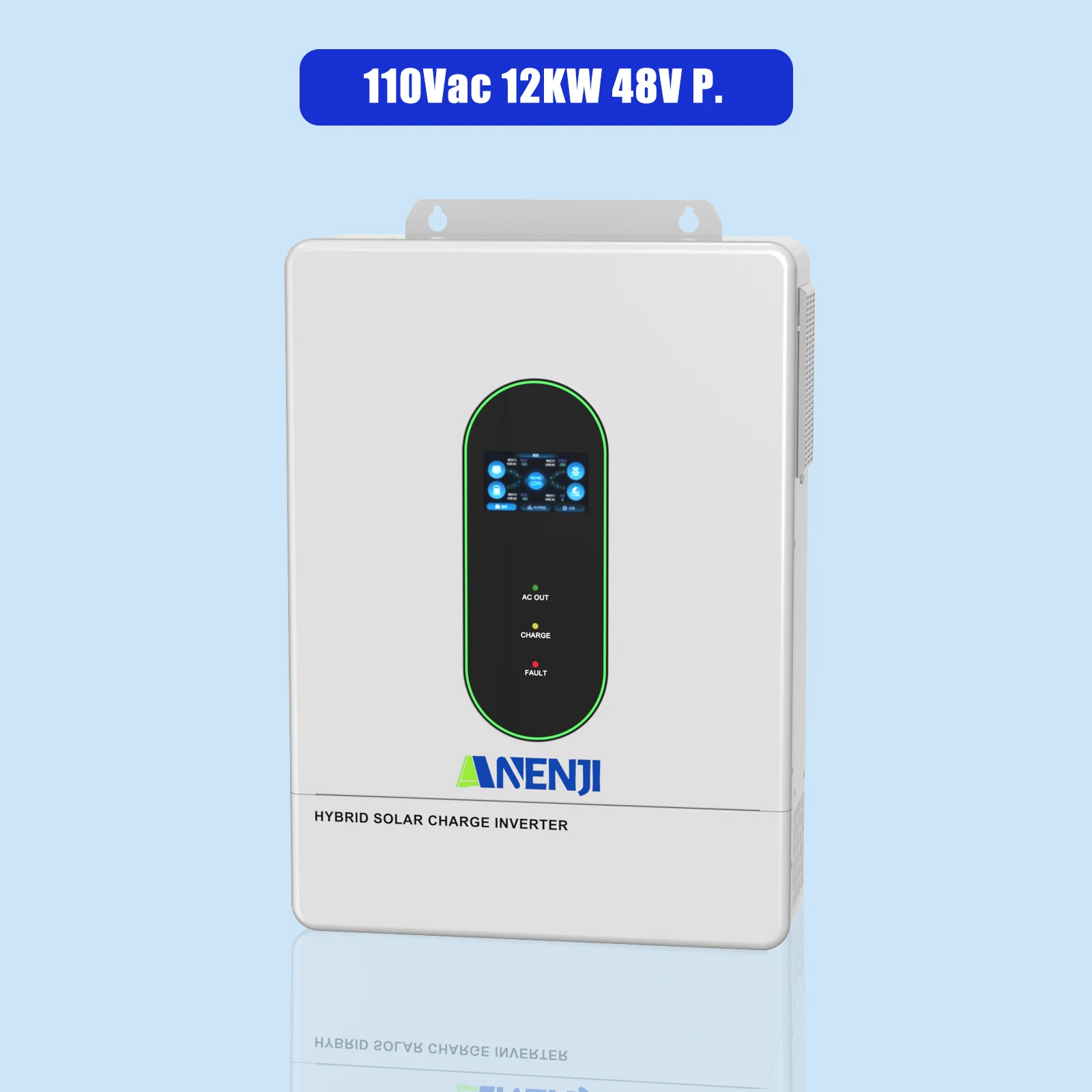

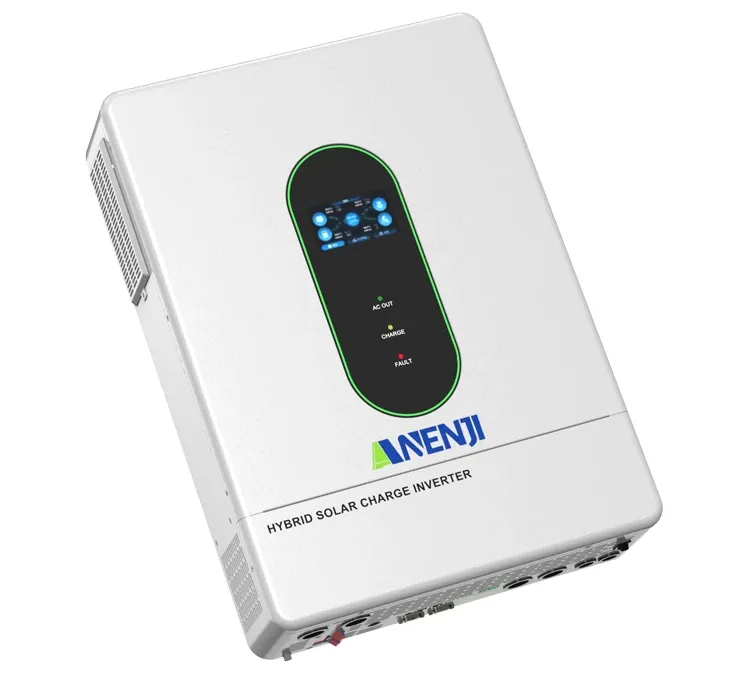

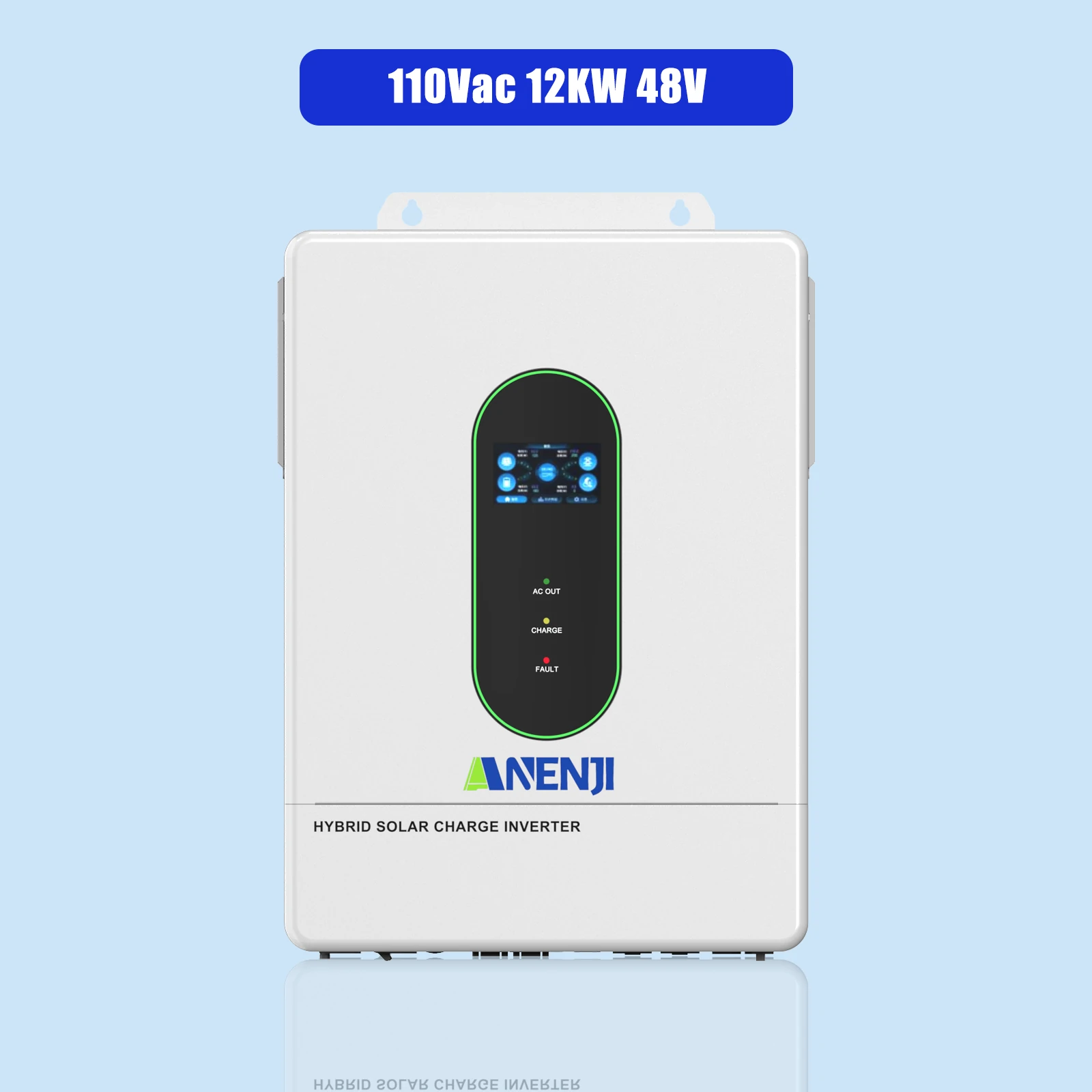

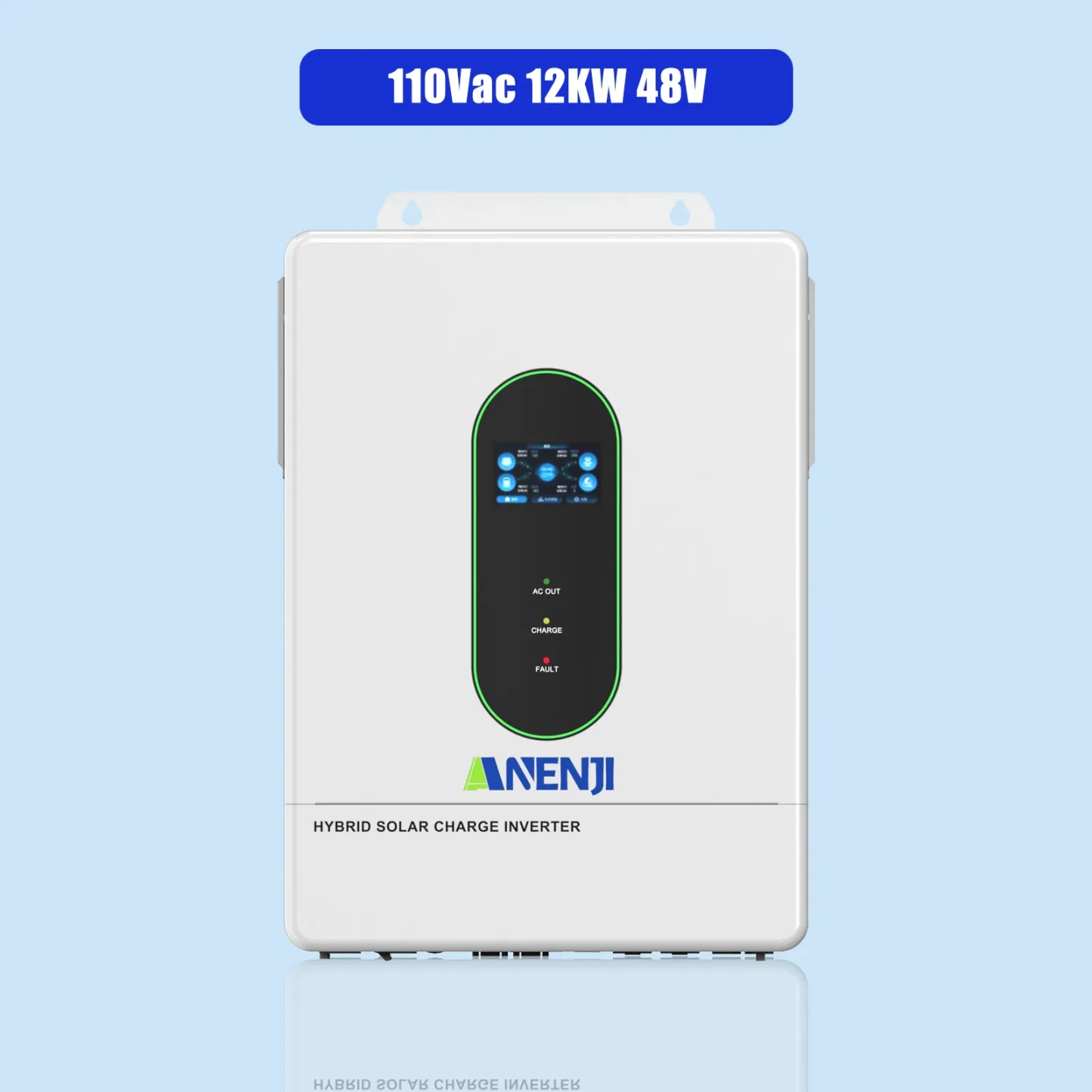

12000W 48V Hybrid split-phase Solar Charge Inverter
12KW Hybrid Solar Charge Inverter, split-phase design with 48V battery voltage and 120V/240V 50Hz/60Hz output.
- AC charging current: 160A
- MPPT charging current: 200A
- PV input current: 22A × 2, voltage range 90V-450V (max open circuit voltage: 500V)
- Supports up to 6 units in parallel for higher capacity or three-phase setups
- Hybrid operation with anti-backflow for self-consumption and load management
Parallel models are available for flexible configurations, including three-phase systems.
Product Features:
- It has the function of sectional charge and discharge (can set the time period for battery charging or discharging).
- Allowing access of lead-acid battery and lithium battery.
- Anti feed-in, self-consumption function (can be hybrid power supply from solar, battery, and grid).
- It can be used without battery. Solar and utility grid can power loads at the same time.
- With dual activation function of lithium battery. It can be triggered by any power supply of the mains or solar (when the li-ion battery was dormant).
- Power saving mode available to reduce no-load loss.
- Available in four charging modes: Only Solar, Mains Priority, Solar Priority, and Mains & Solar hybrid charging.
- Two output modes: mains bypass and inverter output; Uninterrupted power supply.
- Complete protections, including over voltage and under voltage protection, overload protection, reverse protection, etc. 360° all-round protection with a number of protection functions.
- With touch resistance LCD screen dynamic flow diagram design, easy to understand the system data and operation status.
- Full digital voltage and current double closed-loop control, advanced SPWM technology, output of pure sine wave; supports split-phase and single-phase pure sine wave output; Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
- Supports two independent MPPTs, advanced MPPT technology with a tracking efficiency of 99.9%.
- Intelligent variable speed fan to efficiently dissipate heat and extend system life.

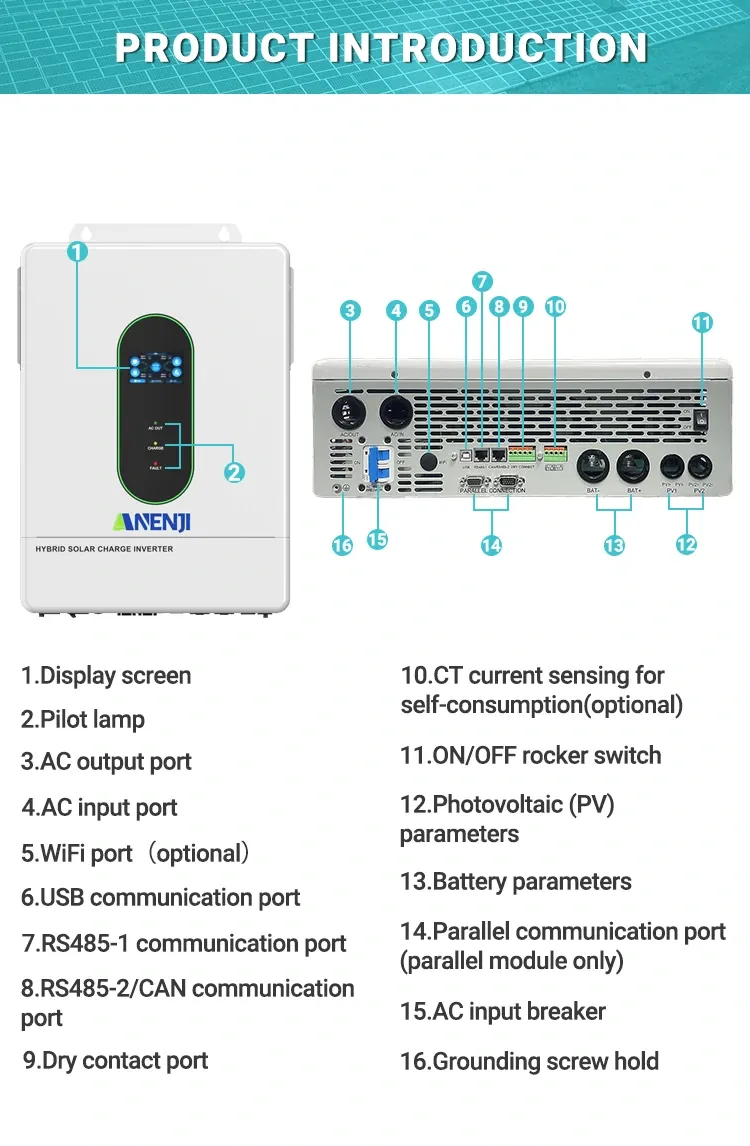

- Diverse human-computer interaction: supports CAN, USB, WiFi, and RS485 communication, local and remote power on or off, dry contact control.
- Can be extended: external CT or smart meter for whole house energy anti feed-in and self-consumption.
