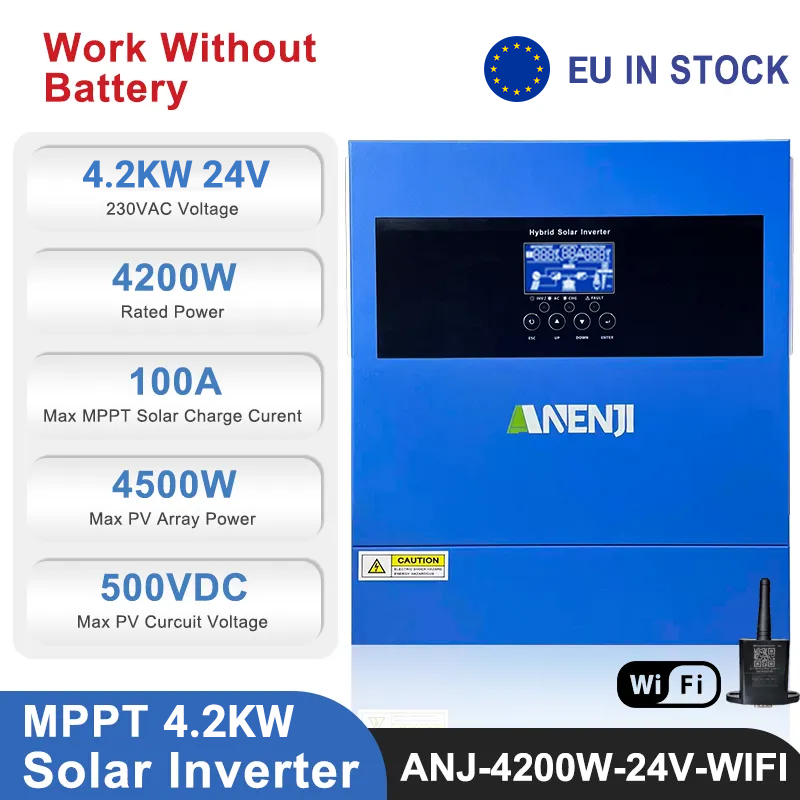

Anenji 4.2KW 24V Hybrid Solar Inverter On grid Off grid Inverter with WIFI
Click to download ANENJI 4.2KW 24V Solar Inverter Manual
4200W 24V Hybrid Solar Inverter Features:
Pure Sine Wave Output: Provides stable pure sine wave output, suitable for various sensitive devices.
Power Factor 1.0: Ensures optimal energy utilization and high-efficiency power transmission.
PV Input Voltage 60Vdc-500Vdc: Supports a wide range of solar input voltages.
Built-in 100A MPPT Controller: Integrates Maximum Power Point Tracking technology to maximize the efficiency of solar panels.
Lithium Battery Activation Function: Can be triggered by mains or PV, ensuring efficient activation and maintenance of lithium batteries.

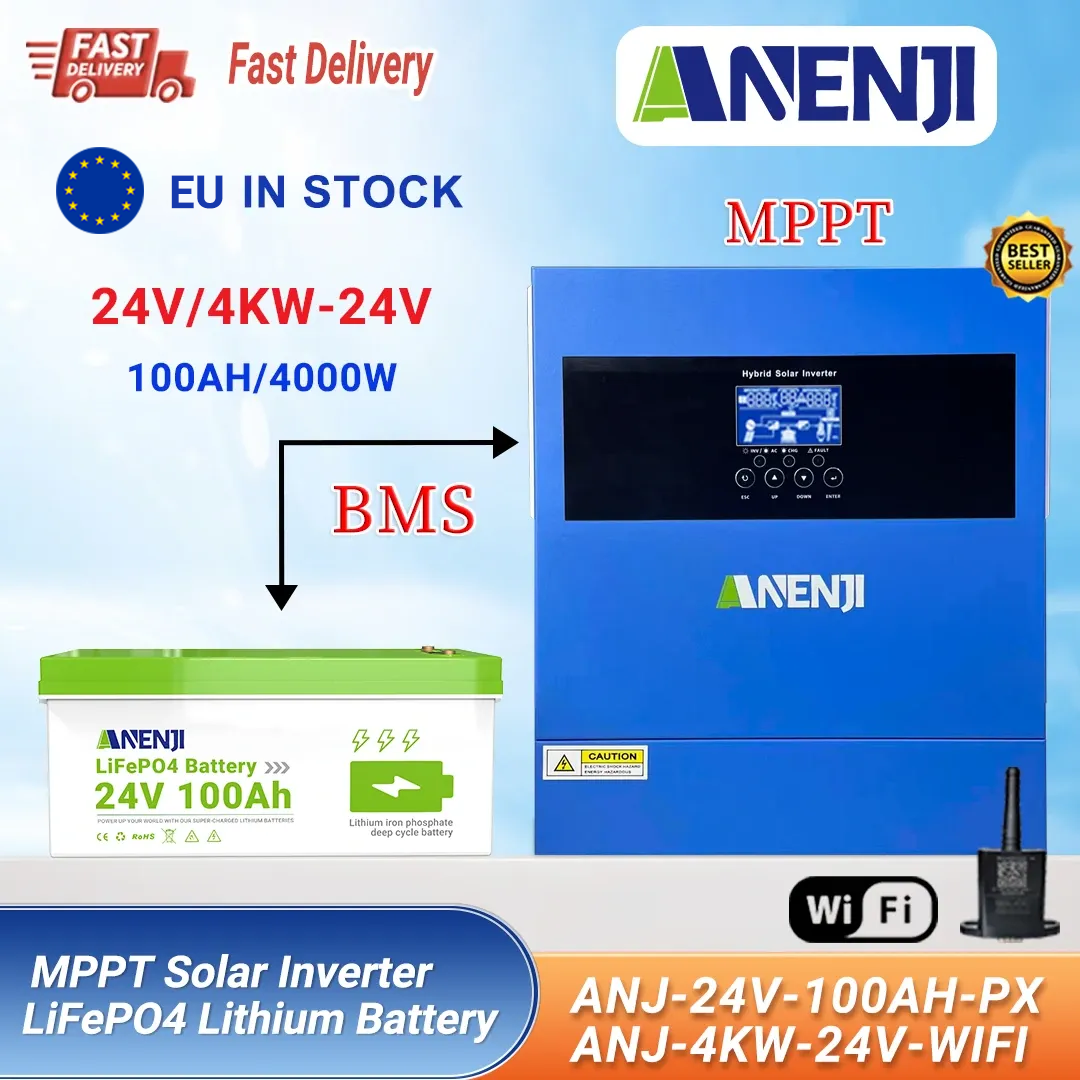

Compatible with LiFePO4 Battery: Compatible with LiFePO4 batteries via RS485 interface, ensuring longer lifespan and higher safety standards.
Capable of Operating Without Battery: Functions normally even without a battery, ensuring continuous power supply.
Detachable Dust Cover: Suitable for harsh environments, providing additional protection.

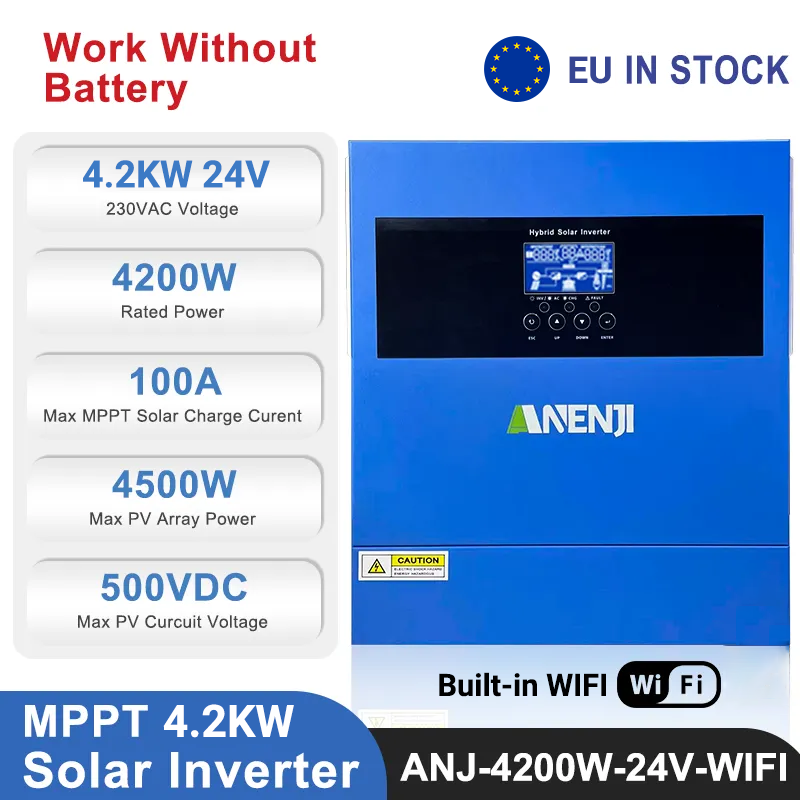

WiFi Remote Monitoring: Supports WiFi remote monitoring for convenient real-time system status updates and control.
Multiple Output Priority Support: Configurable output priority settings including UTL, SOL, SBU, and SUB for flexible power management.
Battery Optimization Function (EQ): Enhances battery performance and extends battery lifecycle.
| MODEL | ANJ-4000W-24V-WIFI |
| Capacity | 4.2KVA/4.2KW |
| Parallel Capability | NO |
| INPUT | |
| Nominal Voltage | 230VACA |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) |
| Frequency | 50/60 Hz (Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220/230VAC+5% |
| Surge Power | 7000VA |
| Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Effciency (PV to INV) | 96% |
| Peak Effciency (Battery to INV) | 93% |
| Overload Protection | 5s@>=140%oad; 10s@110%-140% load |
| Crest Factor | 3:01 |
| Admissible Power Factor | 0.6-1(inductive capacitive) |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Over Charge Protection | 33VDC |
| Charging Method | CC/cV |
| ithium Battery Activation | YES |
| Lithim batteryCommunication | YES(RS485) |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger TYPE | MPPT |
| Max. PV Array Power | 4500W |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60~500VDC |
| Max. Solar input Current | 15A |
| Max. Solar Charge current | 100A |
| Max. AC Charge Current | 80A |
| Max. Charge Current(PV+AC) | 100A |
| PHYSICAL | |
| Dimensions,DxWx H(mm) | 358X295X100 |
| Package DimensionsDxWxH(mm | 465X380X175 |
| Net Weight(kgs) | 7 |
| Communicatlon Interface | RS485 |
| ENVIRONMENT | |
| Operating Temperature Range | -10°C to 50°C |
| Storage temperature | -15°C~60°C |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
.jpg?w=1464&h=600)
Transforming Power with Safety and Adaptability
Multiple protection mechanisms
Short circuit protection, overload protection, over-temperature protection, reverse connection protection... more secure operation
Real-time monitoring ofinverter status
Built-in WiFi module, allowing real-time monitoring of the inverter'soperating status via a mobile app. Search for and download theapp named "Smart Ess" from the Google Play Store.
